Mining & Relocatable Structures

Redfoot Levelling has proven reliability with thousands of vehicles using our Redfoot Levelling systems across Australia and New Zealand. We have years of experience in providing Levelling solutions to our manufactures of Emergency response, Communications, Medical, Dental, Education, Police, Mining, Food catering, Military and Commercial vehicles. Supporting these vehicles is our network of aftermarket Authorised Installers with over 60 Installer/Dealers across Australia.

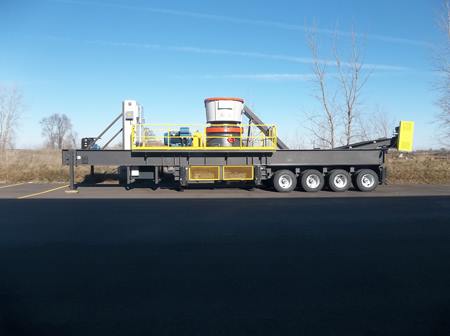

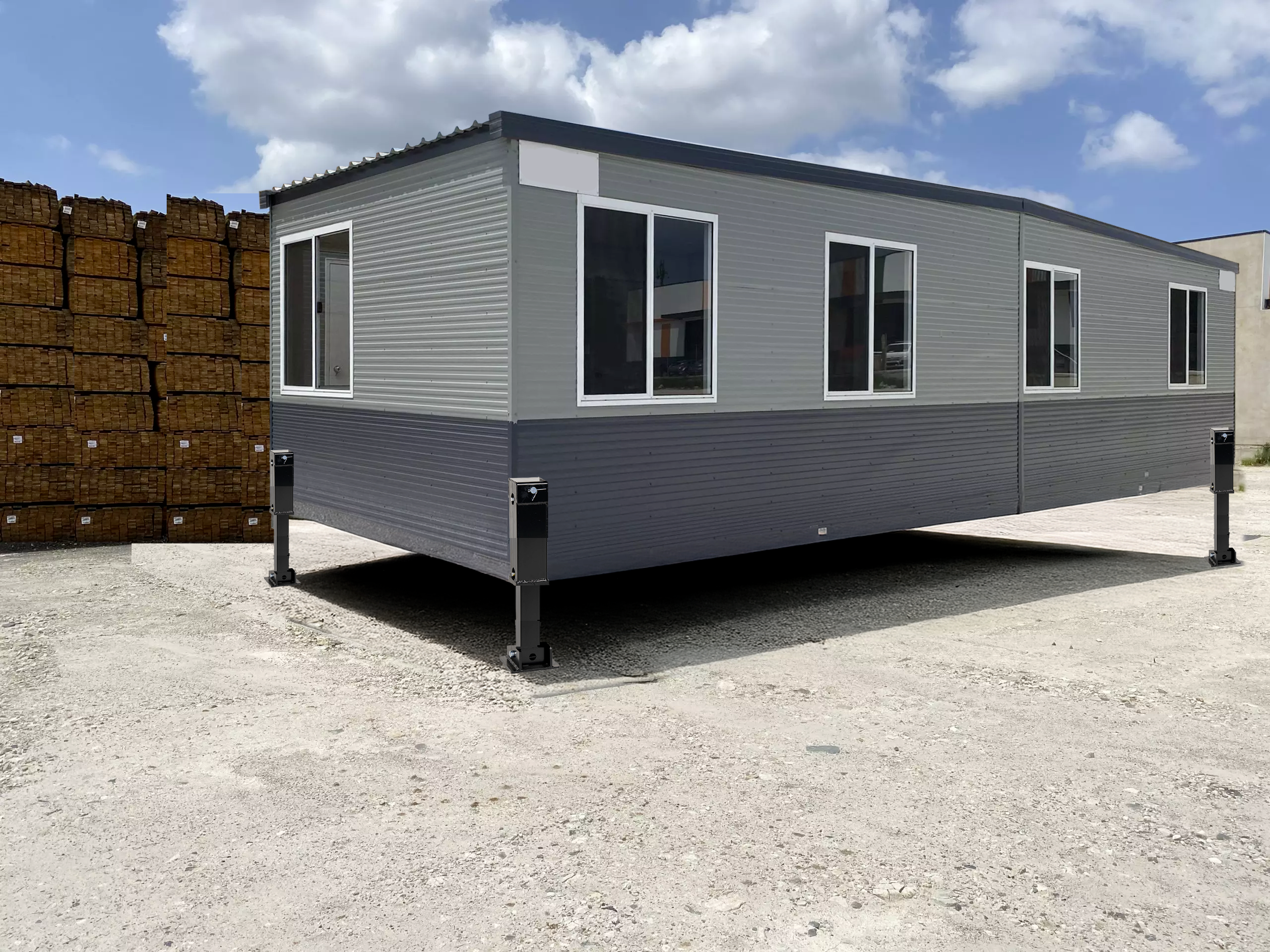

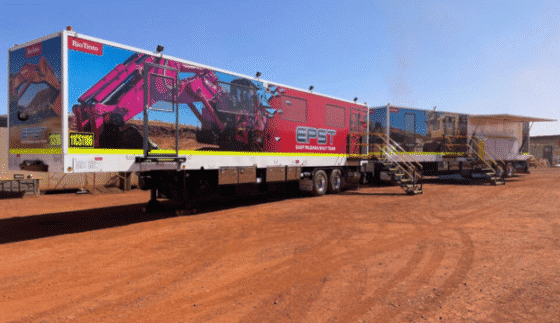

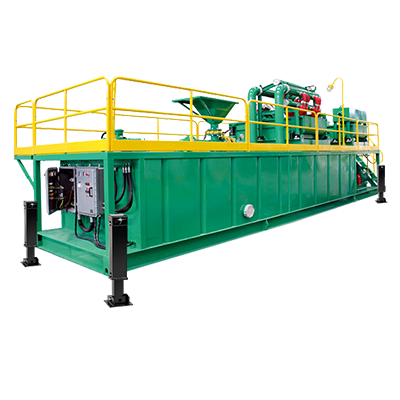

No matter the size, weight or clearance requirements for Mining Equipment or Relocatable Structure, we can provide a solution. All Redfoot Levelling systems include:

1. 1. 1. Weld on type brackets that are engineered and designed specifically to facilitate an easy installation of the hydraulic cylinders. (*Weld on brackets may not always be required on some installations)
      2.  A powerful 12-volt or 24-volt DC Hydraulic Pump to power all 4 cylinders in extend and retract modes

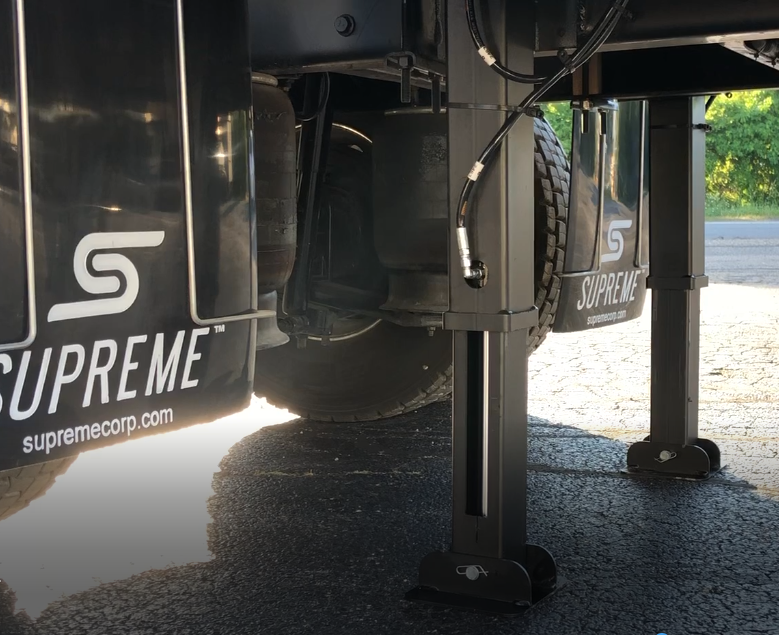

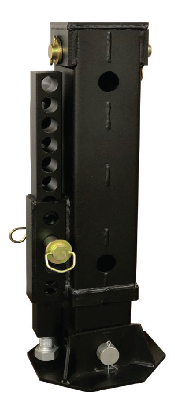

      3.  Four large tube-in-tube levelling jacks with lock in capability
      4. Customised hydraulic hoses and connectors that facilitate the flexible placement of the hydraulic pump pack.
      5. Custom bolts and fittings that allow perfect alignment of all systems parts when installing.

In addition, all Redfoot Levelling tube-in-tube systems come with;

• • • Redfoot Levelling ‘EQ Smart Level’ control keypad
    • All in one large hydraulic pump, manifold and tank reservoir
    • Plug’ n’ Play harness and hoses for easy connection
    • All the necessary mounting brackets if required and hardware fittings
    • Built in Bluetooth capability for remote operation with multiple smart devices

The Redfoot Levelling tube-in-tube system is compatible with both iPhone and Android smartphones.

This leading technology is the industry’s new standard and it has changed the way we level. The Redfoot ‘EQ Smart Level’ allows you to level the equipment with a smart device by using built-in Bluetooth capability.  The automatic, one touch operation levels your vehicle in less than two minutes.

The Redfoot ‘EQ Smart Level’ has a patented sequential leveling program that provides a more precise level throughout the length of your equipment, adding extra stability while maintaining its position as low to the ground as possible. It is quick, easy and simple to operate!

Check out these benefits of the Redfoot Levelling Tube-in-Tube System:

• One touch, push button Auto-Level operation
• Prevents rocking and motion
• Huge 12”x 12” foot pad to reduce sinking
• Simple plug and play wiring installation
• Reduced levelling time, less than 2 minutes
• Huge lifting capacity up to 100 tonnes
• One Large 12-volt or 24-volt dc pump pack operates all cylinders
• Bluetooth capability for one touch remote Smart Level operation
• Adjustable ‘null setting’ feature, ensures levelling to the operators desired level position
• Audible and visual notification prompts to alert users when leveling is in progress and complete
• Auto ‘All Retract’ feature so you can’t drive away while your cylinders are extended or planted
• Emergency manual retract capability for ‘no power’ emergency situations

It is no wonder the Redfoot Levelling Tube-in-Tube System has quickly become the number one choice for Heavy-duty equipment and relocatable structure. Utilising four double acting hydraulic cylinders, the Redfoot Levelling Tube-in-Tube system can extend and retract the cylinders during any levelling sequence. The automatic, one touch operation levels your equipment in less than two minutes, operating each cylinder independently in a sequential process.

Choosing a custom Redfoot Levelling system is as easy as 1,2,3.

Step 1. Determine Manufacturer including the GVM weight.
Step 2. Determine the type of chassis and measure the underfloor to ground clearance behind each axle as shown in the diagram below:
Step 3. Fill out the [ps2id url=’#contact’]contact form[/ps2id] below so we can assist you with a quote and recommendation.

Investing in a Redfoot Levelling Tube-in-Tube system will bring years of improved functionality with your equipment and relocatable structure. In addition to the system, prices will have additional freight costs that will vary depending on the system. The Redfoot Levelling Tube-in-Tube systems are delivered in environmentally friendly packaging that is boxed and placed on a pallet. This ensures every system is well protected during shipping.

The Redfoot Levelling Tube-in-Tube system can be DIY installed provided there is a high level of mechanical skill, we provide a comprehensive installation manual to assist in the fitment process.

We highly recommend the installation to be done by one of our Redfoot Levelling Authorised installers. We have over 60+ Redfoot Levelling installers across Australia that can assist making your concern of installation distant memory. Not all installations are the same, so a solid level of mechanical knowledge is required. Contact one of our authorised installers for a customised quote. Different installers have different cost structures depending on their workshop rental costs and over heads, sometime influenced by their location. Best thing is to talk with your installer about the installation cost.
